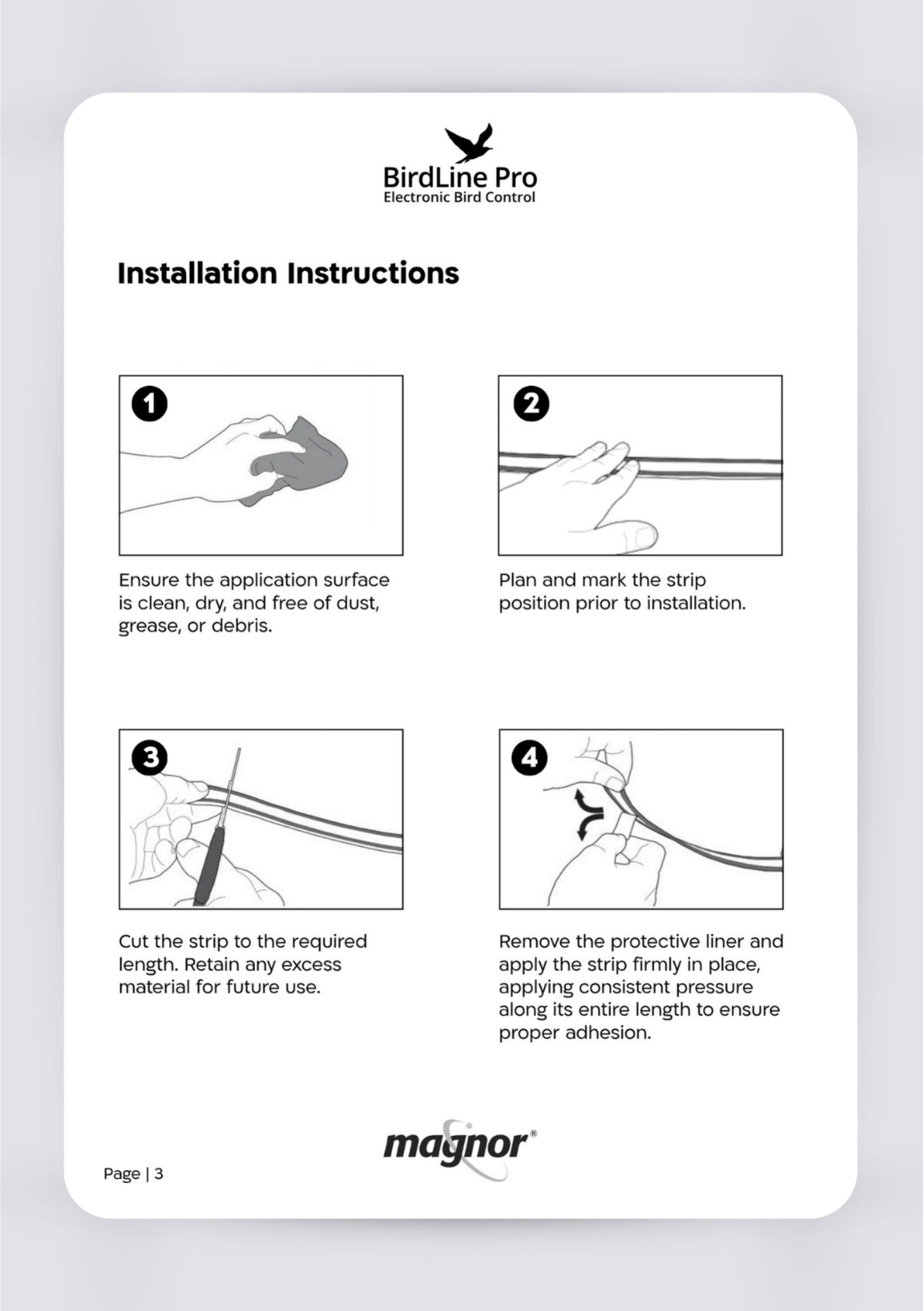

Assembly Instructions

Step 1

Take the BirdLine Strip out of its packaging.

Step 2

Ensure the application surface is clean, dry, and free of dust, grease, or debris.

Step 3

Plan and mark the strip position prior to installation.

Step 4

Cut the strip to the required length. Retain any excess material for future use.

Step 5

Remove the protective liner and apply the strip firmly in place, applying consistent pressure along its entire length to ensure proper adhesion.

Step 6

Connect the strips using the appropriate connector (straight, L, or T) as needed.

Step 7

Connect the output terminals, on the Solar unit, to the strip using the designated connector.

Step 8

Connect the output terminals, on the Electric unit, to the strip using the designated connector.

Step 9

Avoid touching the strip after the units are connected.

Step 10

You are protected by Magnor.

Marriott
M
Sheraton
Motorola
Sodastream
Soho House Logo

Strip

How It Works?

The BirdLine Pro Electric Box is controlled by a smart electric processor. The processor controls the structure, intensity, and frequency of the pulse, as well as its automatic adaptation to changing conditions such as humidity, day and night, and more.

The pulse rate varies randomly, teaching pigeons and birds to stay away. Pigeons and birds have episodic-like memory for locations, and over time, the pulse conditions them to avoid returning by classifying the area as hostile and unpleasant.

Strip

Designed for Real Environments

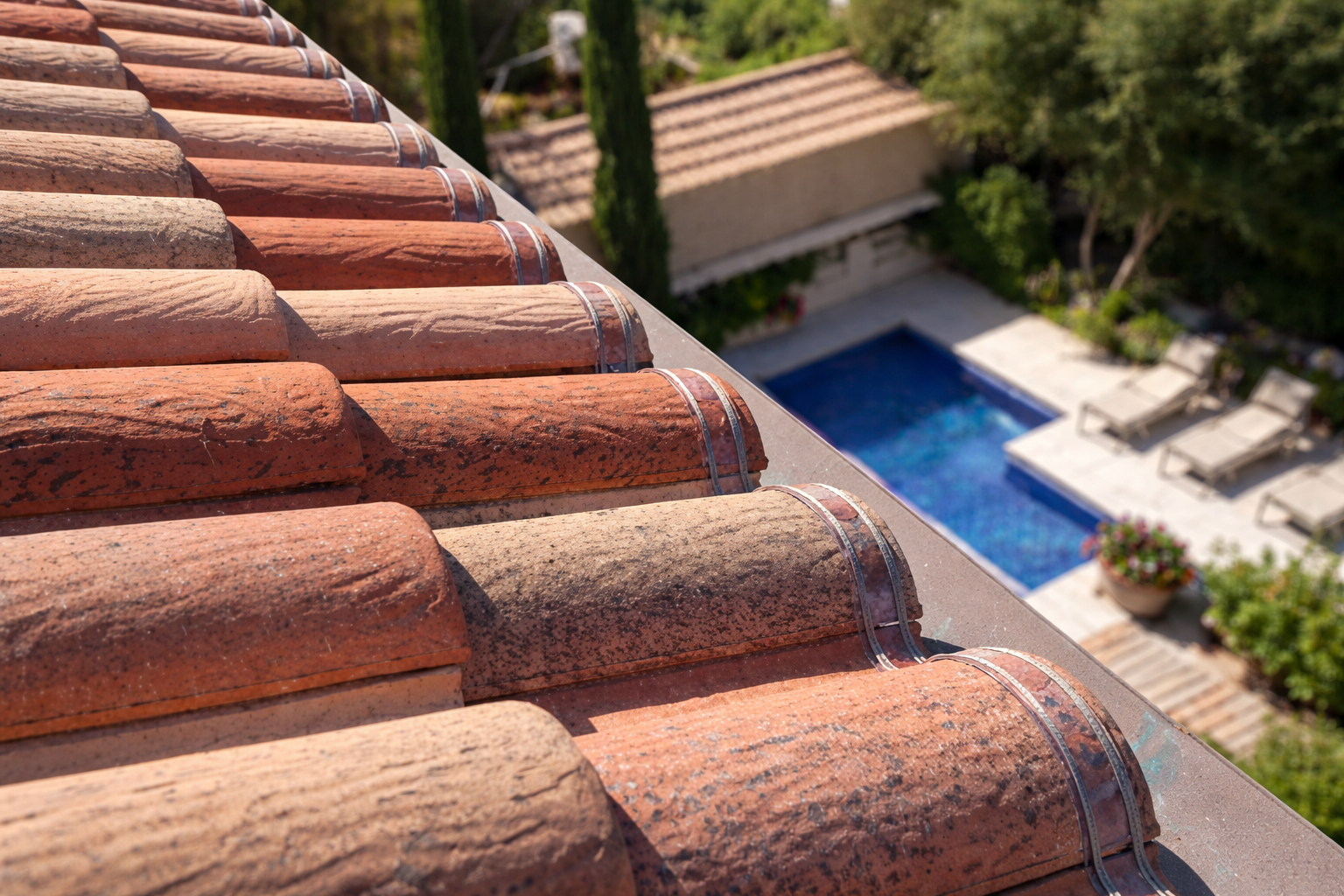

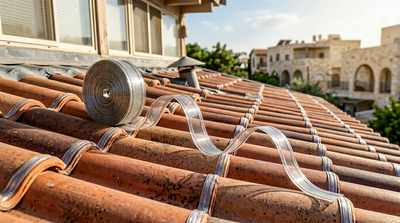

The bird deterrent system is suitable for all types of roofs, window sills, balconies, concealed air conditionings, warehouses, and solar systems.Our system is equipped with motion sensors that detect when a person is nearby and automatically stop operation. This prevents contact with the strips and avoids any unpleasant touch. While the sensation may be uncomfortable, it is completely harmless to humans and animals.

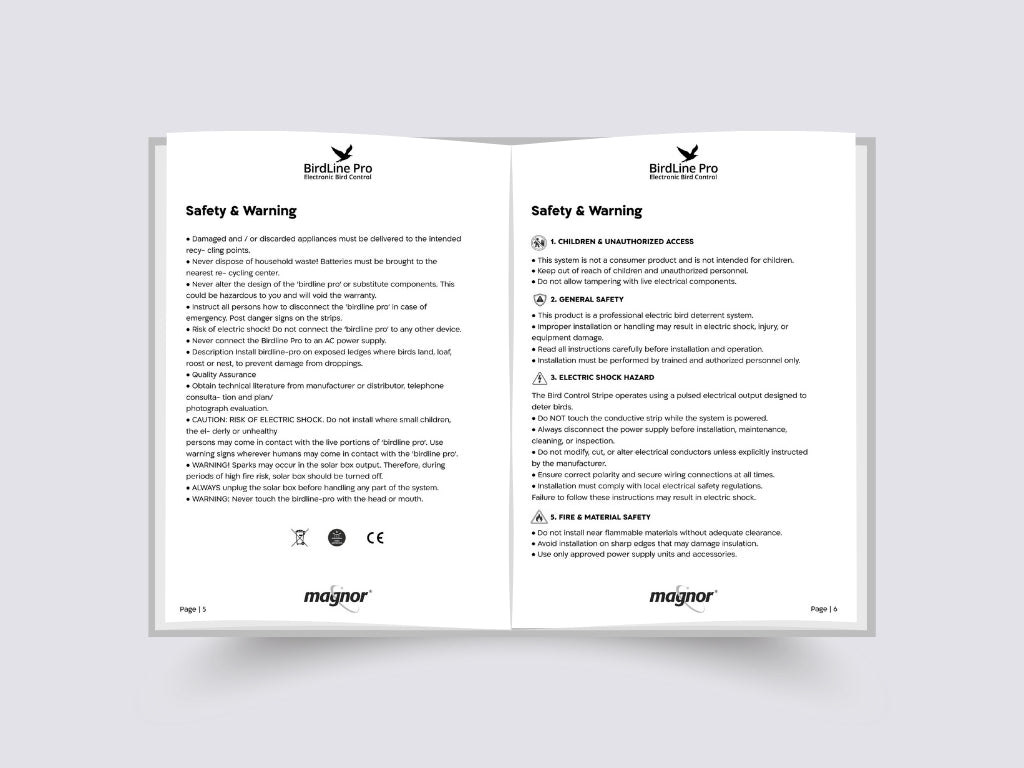

User Manual

Discover all product specifications and included parts. Follow clear assembly instructions step by step. Access helpful troubleshooting tips and visual guides.

View User Manual

FAQs

Here you can find quick answers to the most common questions and troubleshooting steps to help resolve issues on your own.

Why is the system not producing pulses or output?

This usually happens due to simple connection issues:
- Power supply is disconnected
- Wiring is loose or not connected correctly
- Power source is not functioning properly
What you can do:
- Make sure the system is properly connected and turned ON
- Check all wiring connections
- Inspect cables for visible damage
- Turn the system off for 60 seconds, then restart it

Why is the bird deterrent effect weak?

If performance is reduced, it may be related to installation or environment:
- Incorrect installation location
- Insufficient surface coverage
- Dirt or debris on the conductive strip
What you can do:
- Ensure the strip is installed on main bird landing areas
- Clean dust and buildup from the strip
- Verify full coverage and correct spacing according to installation guidelines

When should I contact support?

Please contact support if:
- Problems continue after all checks
- The system shuts down repeatedly
- Internal damage is suspected
Do not attempt internal repairs

Didn’t find your answer?

Don't hestitate to contact us
